UV LED CURING

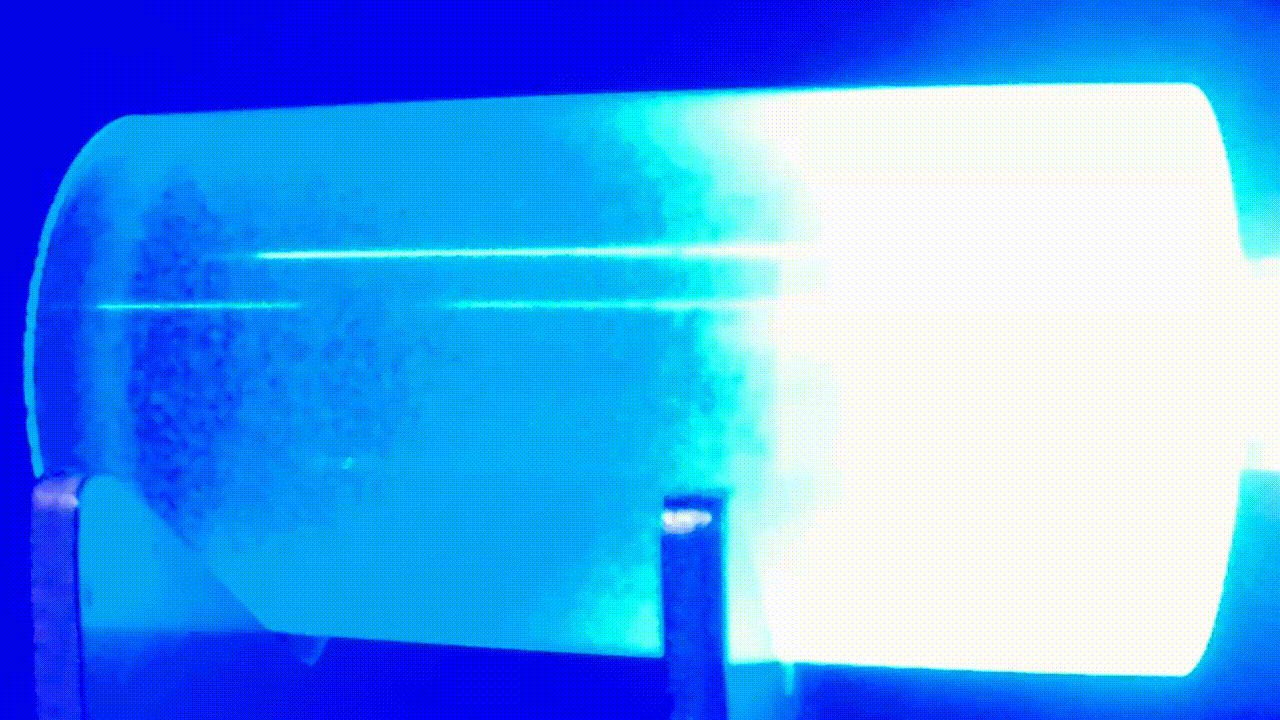

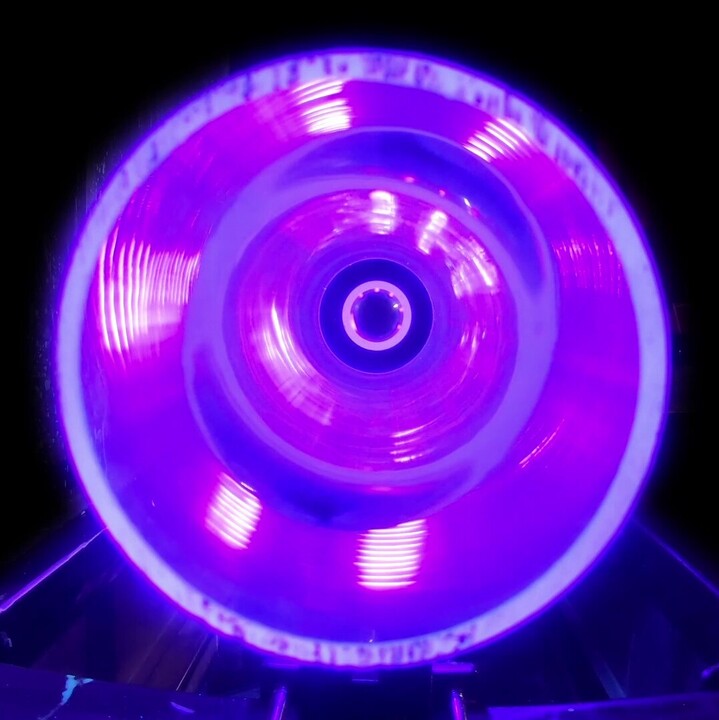

After applying the coating, a specific UV-led lamp is used to cure the paint on the inner surface.

The process takes place in about 60 seconds and doesn’t require post-processing. The time cycle depends on the product’s length and the type of coating to be applied.

The equipment has compact dimensions, especially compared to ordinary thermal curing furnaces or warehouses for storing curing products.

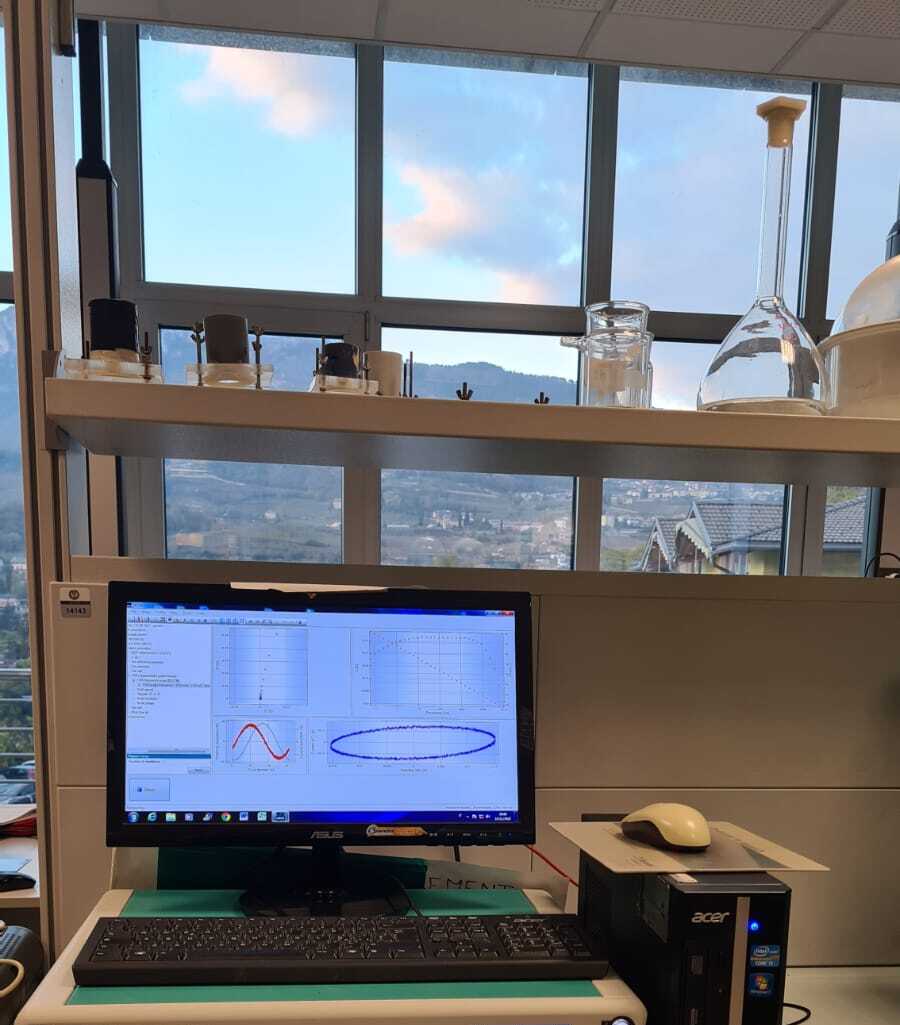

The curing technology has been defined with the collaboration of the University of Trento.

Better with UV curing

IMPROVE CURING TIME

UV coating cures in 60-120 seconds without post processing.

Process at room temperature

UV Cure is on or off without pre-heat and can occurs at ambient temperature.

all-in-one solution

UV technology is compact and integrat in all the coating process.

safe workplace

UV technology is a safe solutions, avoiding thermal ovens and organic volatile compound.

Our high-performance UV paint solutions

AVOID WASTING ENERGY IN THE COATING PROCESS

Elixe - RadfleX


First layer in contact with metal, ensures high adhesion and corrosion protection.

 Appearance White Matte
Volume of solids 100%
Specific gravity 1,40-1,50 g/cm3
Thickness 80-150 µm
Operative temperature 120-150 °C
Curing time 30-60 s

Top layer with optimal surface cure to be used on top of a primer. Provides anti-scratch and slip properties.

 Appearance Pale yellow, gloss
Volume of solids 100%
Specific gravity 1,20-1,40 g/cm3
Thickness 40-100 µm
Operative temperature 120-150 °C
Curing time 30-60 s

Our high-performance coating is the result of advanced research and patented technology. We guarantee long-lasting quality and certified technical performance.

- Corrosion protection

- Flow improvement

- Anti-scratch properties

- Impact resistance

- High pressure high temperature resistance

“ GREENCOAT ” Project funded with a contribution from the Autonomous Province of Trento
Law No. 6 of December 13, 1999, as amended – “Aid for the promotion of research and development”
